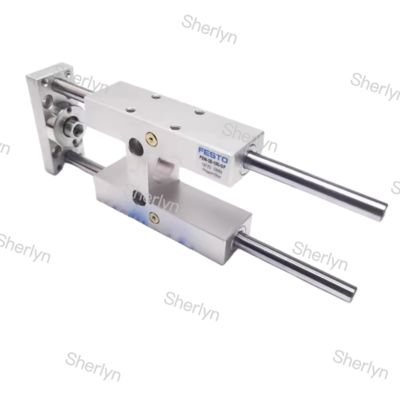

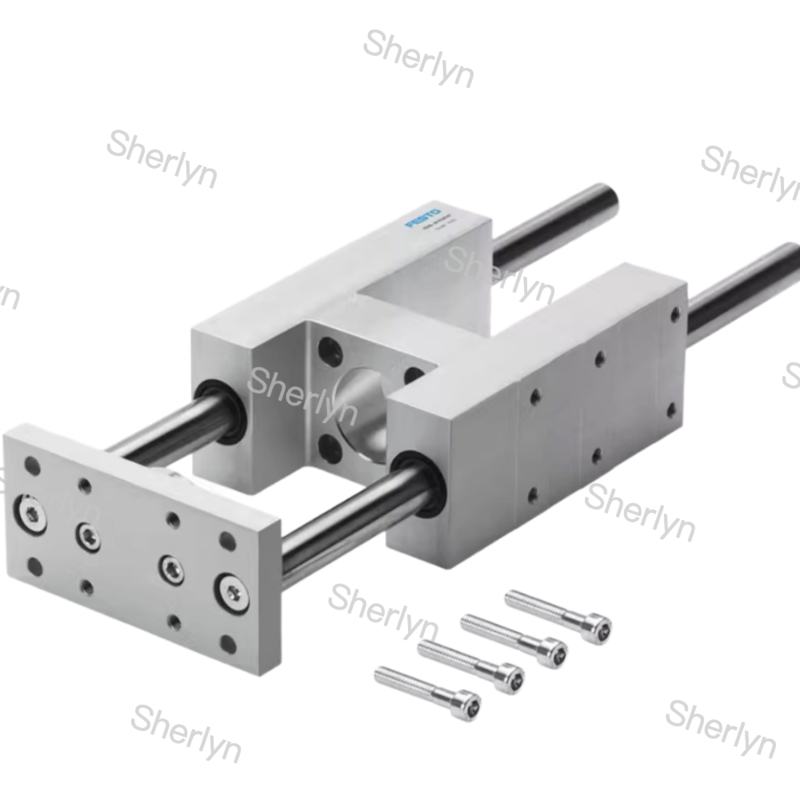

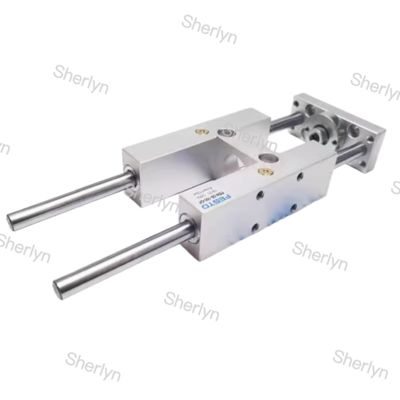

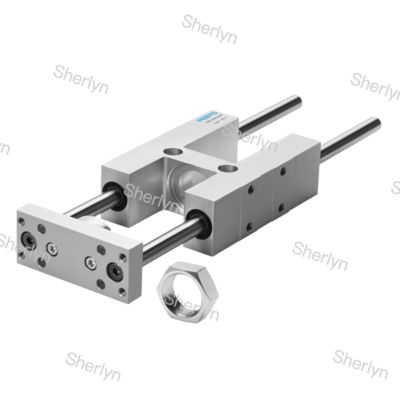

FEN-12/16-160-GF FESTO Cylinder Guide Unit 8208450

Technical Data

• Size12/16
• Stroke160 mm
• Mounting positionAny
• GuideSliding guide
• Structural designGuide
• Explosion prevention and protectionObserve the information on the certificate
• LABS (PWIS) conformityVDMA24364-B2-L
• Ambient temperature-20 °C ... 80 °C

Product Description:

The FESTO FEN series guided cylinders are specifically engineered for high-precision applications that demand consistent linear motion. These cylinders boast a range of key features:

• Integrated Guidance System: The cylinders are equipped with built-in guide rods or profile rails that deliver exceptional anti-rotation capability and moment resistance. This ensures precise positioning and stable movement even under significant side loads.
• High Rigidity and Load Capacity: The durable construction of the cylinders allows for the handling of substantial moment loads and lateral forces. These qualities make them ideal for applications that require high stiffness and durability.
• Compact Design Space: Despite their robust build, the FEN series cylinders maintain a compact footprint. This space-efficient design facilitates easy integration into machinery with limited installation space.
• Smooth Operation: Options are available with slide bushings or recirculating ball bearing guides, enabling smooth, low-friction movement with high positioning accuracy.
• Maintenance-Friendly Design: Many models in the series offer long service life with minimal maintenance needs. Additionally, corrosion-resistant variants are available for applications in challenging environments.

Applications:

Product Applications of FESTO FEN Series Guided Cylinders

The FEN series finds extensive use across various industrial automation sectors:

• Precision Assembly Operations: Ideal for pick-and-place systems, component insertion, and precision assembly tasks where accurate positioning is critical.
• Material Handling Systems: Widely used in automated transfer lines, loading/unloading stations, and material positioning equipment that requires guided linear motion.
• Testing and Inspection Equipment: Suitable for applications requiring precise linear movement in testing apparatus, measurement devices, and quality control stations.
• Automated Production Lines: Commonly implemented in packaging machinery, semiconductor manufacturing equipment, and automated production systems.
• Electronics Manufacturing: Particularly valuable in PCB handling, component assembly, and other electronics production applications where precise, non-rotating linear motion is essential.

Support and Services:

Our Product Technical Support and Services for the Piston Pneumatic Cylinder include:

- Expert troubleshooting assistance for any issues related to the cylinder

- Guidance on proper installation and maintenance procedures

- Access to product documentation and manuals for reference

- Recommendations for spare parts and replacements

- Training sessions on how to use and maximize the performance of the cylinder

Packing and Shipping:

Product Packaging for Piston Pneumatic Cylinder:

- The piston pneumatic cylinder will be securely packed in a sturdy cardboard box.

- The product will be surrounded by protective padding to prevent any damage during transit.

Shipping Information:

- The product will be shipped via a reliable courier service to ensure safe and timely delivery.

- A tracking number will be provided so you can monitor the status of your shipment.
