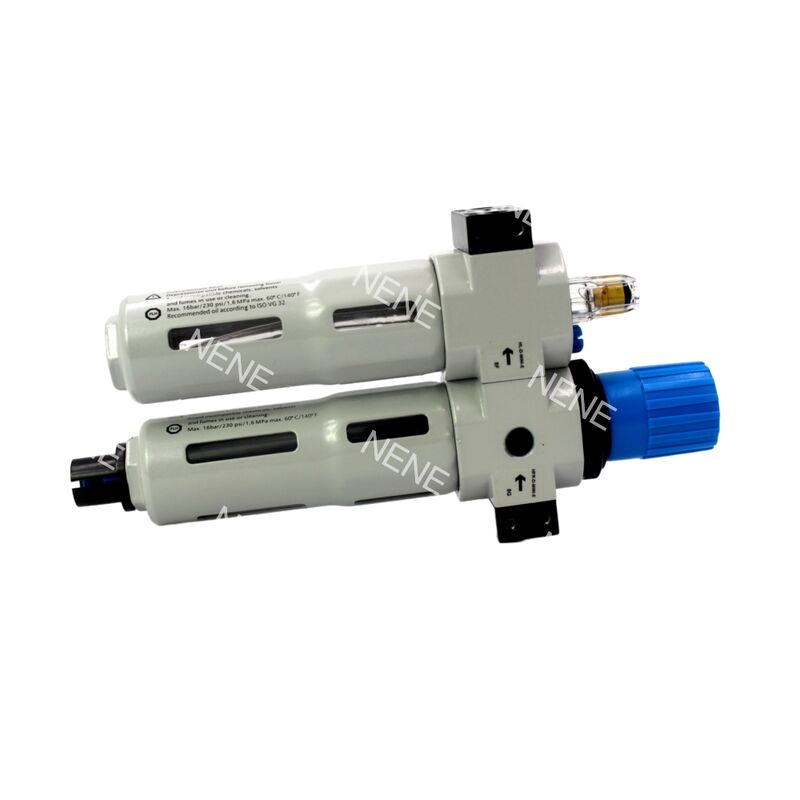

Product Description:
This pneumatic filter regulator lubricator combines three essential functions into one unit: filtration, pressure regulation, and lubrication. It is designed to accommodate various port sizes and multiple configuration options, including the standard model, an automatic drainage version (A), a pressure gauge variant (MPA), and other combined types.
Its compact design and straightforward installation process make it highly convenient to use. The device efficiently filters out moisture, dust, and other impurities from the air supply, ensuring that the working pressure remains stable. Additionally, it delivers consistent oil mist lubrication to pneumatic components, enhancing their performance and longevity.
Built with a focus on reliability, this unit offers excellent sealing capabilities, resistance to pressure, durability, and stable operation. Due to these qualities, it serves as a universal and crucial accessory for air source pre-treatment in various pneumatic systems.
Features:
The device features an integrated 3-in-1 design that combines filtration, pressure regulation, and lubrication into a single unit. This compact structure saves valuable installation space and simplifies the layout of pipelines.
It provides precise and sensitive pressure adjustment, ensuring a stable air pressure output with minimal fluctuations. This consistency helps maintain the smooth and reliable operation of various equipment.
Equipped with a high-precision filter element, the device effectively removes condensed water and solid impurities from the air stream. This filtration protects downstream pneumatic components from damage and contamination.
The unit includes an independent oil mist lubrication system that delivers a uniform oil supply. This reduces wear on cylinders and solenoid valves, thereby extending the overall service life of the equipment.
Multiple configuration options are available to meet different operational needs, including versions with normal drainage, automatic drainage, and pressure gauges. These adaptations ensure the device performs optimally under various working conditions.
Constructed from high-quality shell materials, the device is pressure-resistant, anti-aging, and features a sealed, air-tight design. This makes it suitable for long-term, continuous use in industrial environments.
Technical Parameters:
| Product Type |
Pneumatic Filter Regulator Lubricator |
| Pressure Regulation Range |
0.5–7 bar |
| Applicable Medium |
Compressed Air |
| Filtration Precision |
40 μm |
| Port Specification |
1/8, 1/4, 3/8 |
| Structure |
Compact Mini Integrated Type |
Applications:
This product is highly versatile and can be applied across a wide range of automated machinery and equipment. It is commonly used in production lines, packaging machinery, textile machinery, electronic devices, printing machines, light industrial automation systems, and various pneumatic tools.
Its primary function is to support air source pre-treatment, particularly at the front end of components such as cylinders, solenoid valves, and pneumatic actuators. By doing so, it ensures efficient purification, stable pressure regulation, and effective lubrication within the pneumatic system.
Moreover, this product is universally compatible with all models of the same specifications, making it an ideal choice for various industrial applications requiring reliable air treatment solutions.
Support and Services:
Our Pneumatic Filter Regulator Lubricator (FRL) units are designed to ensure optimal performance and longevity of your pneumatic systems by providing clean, regulated, and lubricated air supply. For technical support, please refer to the product manual included with your FRL unit, which contains detailed installation, operation, and maintenance instructions.
When installing the FRL, ensure that the unit is mounted vertically with the flow direction following the arrow marked on the body. Regularly check and replace filter elements to prevent contamination and maintain air quality. Adjust the regulator to the desired outlet pressure according to your system requirements. The lubricator should be filled with the recommended pneumatic oil to ensure proper lubrication of downstream components.
If you encounter any issues with pressure regulation, filtration, or lubrication, verify that the air supply is within the specified range and that all connections are secure and free of leaks. Clean or replace the filter element if clogging is suspected. For lubrication problems, ensure that the lubricator reservoir contains the correct oil and that the drip rate is properly adjusted.
Our technical support team is committed to assisting you with troubleshooting, maintenance tips, and guidance to optimize the performance of your FRL unit. Please consult the troubleshooting section of the manual for common issues and solutions before seeking further assistance.
For routine maintenance, it is recommended to drain accumulated water and contaminants from the filter bowl regularly, check the regulator setting periodically, and refill the lubricator as needed. Using genuine replacement parts and accessories will help maintain the reliability and efficiency of your pneumatic system.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, high-quality cardboard box to ensure protection during transit. Inside the box, the product is cushioned with foam inserts to prevent any damage from impacts or vibrations. Each unit is individually wrapped in anti-static material to protect sensitive components. Clear labeling with product information, model number, and handling instructions is provided on the packaging for easy identification and safe handling.
Shipping: The product is shipped using reliable carriers with options for standard or expedited delivery. All shipments include tracking information to monitor the package in real-time. The packaging is designed to withstand various shipping conditions, including temperature variations and rough handling. For bulk orders, products are palletized and shrink-wrapped to ensure stability and safety during transportation. We ensure prompt dispatch and delivery to meet customer timelines efficiently.
