Detailed Product Description
| Product Name: |

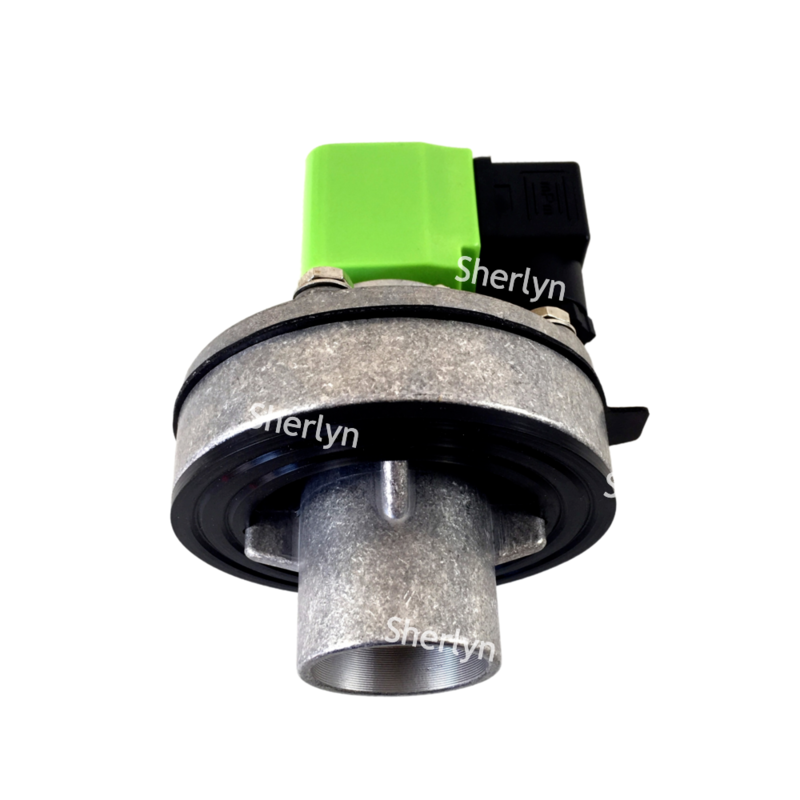

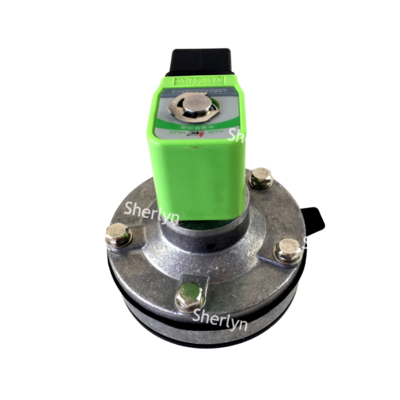

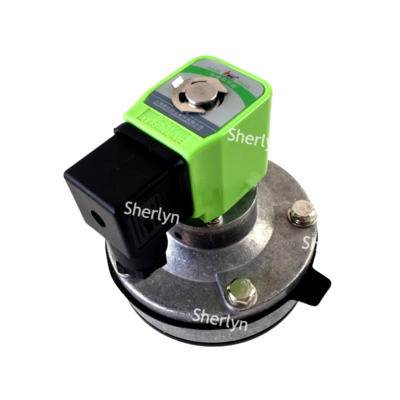

DMF-Y-25 Pulse Jet Valve |
Remote Or Integral Pilot: |
Integral Pilot |
| Outlet Pipe Size: |
1'' |
Structure: |
Diaphragm |
| Diaphragm Material: |
NBR (Buna) |
Right Angle Pulse Jet Valve: |
DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-Z-102S |
| Quick Mount Pulse Jet Valve: |
DMF-ZM-20, DMF-ZM-25, DMF-ZM-40S, DMF-ZL-B |
Embedded/Immersion Pulse Jet Valve: |
DMF-Y-25, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S, DMF-YA-76S, DMF-YB-76S, DMF-Y-102S, DMF-Y-102SA, DMF-Y-102SE |
| Flanged Pulse Jet Valve: |
DMF-ZF-25, DMF-ZF-40S |
Straight Through Pulse Jet Valve: |
DMF-T-20, DMF-T-25S, DMF-T-40S, DMF-T-50S, DMF-T-62S |
| Working Pressure Range: |
0.1 To 0.8MPa |
Voltage: |
24VDC, 220VAC |
| Highlight: |
BFEC Embedded Pulse Valve
,
220V AC Pulse Valve
,
SBFEC Type DMF-Y-25
|
Product Description:
The DMF series is categorized into three different installation structures to accommodate various working conditions:
- Right angle (DMF-Z)
The inlet and outlet angles are 90 degrees, featuring a compact structure that saves space by up to 5 units.
Typical model: DMF-Z-25/40S, suitable for high dust environments in steel and cement plants.
Advantages: Easy installation with direct connection between the airbag and spray pipe.
- Direct type (DMF-T)
The inlet and outlet angles are 180 degrees with low airflow resistance, suitable for small and medium-sized dust removal units.
Typical model: DMF-T-20 (diameter 20mm), ideal for dust collection in wood processing and food industries.
Parameters: Working pressure of 0.4~0.7MPa, diaphragm life exceeding 1 million cycles.
- Submerged (DMF-Y)
A popular model with the valve body embedded in the airbag installation, offering high circulation efficiency for low-pressure gas source scenarios.
Typical models:
- DMF-Y-80 (3.5 inches): Provides extensive spray coverage for enhanced dust removal efficiency.
- DMF-Y-102SA: Features a 3-inch valve body producing a 4-inch injection effect, increasing injection volume by 45% compared to traditional 3-inch valves.
- DMF-Y-76S/90S: Designed with a large diameter range (76mm to 102mm), suitable for large-scale systems like cement kiln tail and waste incineration.
Applications:
Industrial dust removal system
Iron and Steel Metallurgy: Used for high-temperature and high dust environments such as sintering heads and blast furnace gas purification, requiring the use of a cooler (temperature ≤ 60 ℃). It is recommended to use a DMF-Z right angle valve or submerged valve.
Cement manufacturing: kiln tail dust collector, raw material grinding dust removal, compatible with DMF-Y submerged valve (such as DMF-Y-80), resistant to ambient temperature dust (<80 ℃).
Garbage incineration: Fluorine rubber (FKM) membrane submerged valves (such as DMF-Y-62S) are required for acid flue gas treatment, which can increase corrosion resistance by 8 times.
Wood processing/food chemical industry: sawdust or powder pneumatic conveying scenarios, suitable for straight through valves (DMF-T series), requiring oil-free dry air (oil content < 5ppm).
Auxiliary system
Bunker arch breaking: The material bridge in the coal powder silo and grain silo is broken by pulse airflow, with a frequency of ≤ 30 times/minute.
Pneumatic conveying blockage removal: Install pulse valves at pipeline blockage points to instantly spray and clear powder materials (such as plastic particles and food-grade calcium carbonate).
Technical data of DMF Series Embedded Pulse Jet Valve:
| Model number |
DMF-Y-25 |
DMF-Y-40S |
DMF-Y-50S |
DMF-Y-62S |
DMF-Y-76S |
DMF-Y-102S |
| Port sizes |
G1'' |
G1 1/2'' |
G2'' |
G2 1/2'' |
G3'' |
G4'' |
| Membrane sizes |
φ96 |
φ112 |
φ160 |
φ188 |
φ202 |
φ255 |
| (φ66 smaller) |
| CV values |
30.53 |
53.47 |
71.47 |
150.85 |
186.66 |
313.09 |
| Blowing area |
8月10日 |
12月16日 |
18-28 |
27-38 |
37-65 |
70-90 |
| (m2) |
| Weight |
0.75 |
1.2 |
2.35 |
3.2 |
4.05 |
5.65 |
| (kg) |
| Environment Temperature |
-25℃ to +80℃ or customized |
| Relative Humidity |
≤85% |
| Working Medium |
Clean Air |
| Protection Class |
IP65 |
| Service Life |
Over one million times |
| Voltage |
DC24V, AC24V, AC110V, AC220V |
Support and Services:
Our Product Technical Support team for Pulse Jet Valves is dedicated to assisting customers with any technical inquiries or issues related to the product. Our support staff is knowledgeable and ready to provide expert advice and guidance to ensure that our customers can effectively use and maintain their Pulse Jet Valves.
In addition to technical support, we also offer a range of services for Pulse Jet Valves, including installation assistance, maintenance programs, and training sessions. Our goal is to help customers get the most out of their products and maximize their performance and lifespan.
Packing and Shipping:
Product Name: Pulse Jet Valves
Description: High-performance pulse jet valves for industrial applications.
Package Includes: 1 Pulse Jet Valve, Installation Instructions
Shipping Method: Standard Shipping
Shipping Time: 3-5 business days
