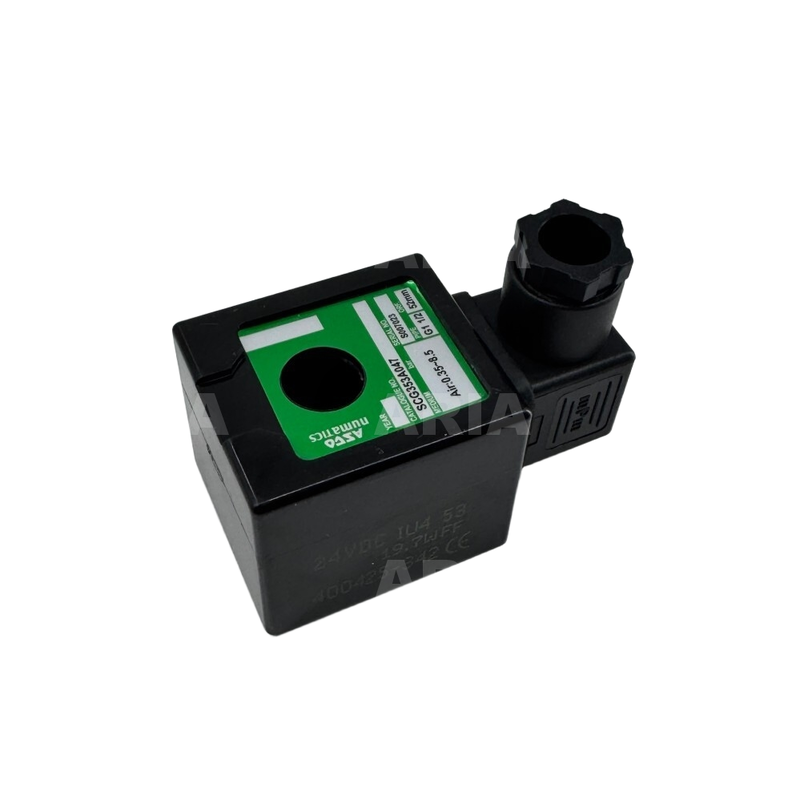

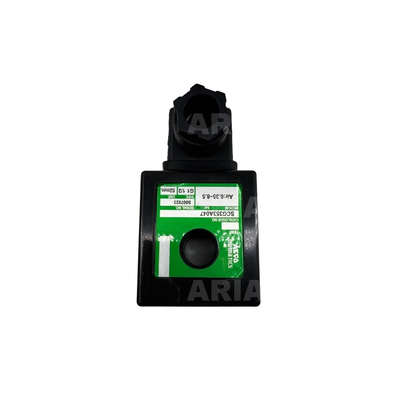

400425-107 400425-117 ASCO Solenoid Valve 400425 Series Pulse Valve Coil IP65 Protection Level Providing

Product Description:

Features:

Brand: ASCO (Originating from the United States, ASCO guarantees high quality and complies with IEC 335 electrical safety standards.)

Product Series: This product is available in the 400425 Series and 400325 Series, catering to various application requirements.

Core Function: The ASCO Pulse Valve Coil is designed to control the start and stop of pulse valves, enabling media on-off switching and pulse jet control. It meets the precise control needs essential for equipment such as pulse dust removal systems.

Insulation Class: Featuring Class F insulation rated at 155℃, the coil provides excellent insulation performance. This effectively prevents leakage hazards and ensures the safe operation of the connected equipment.

Protection Level: The coil comes with a molded shell rated at IP65, which offers waterproof and dustproof protection. This makes it suitable for various harsh industrial environments by preventing damage caused by dust and water vapor.

Operating Temperature: Capable of operating within a wide temperature range from -40℃ to +60℃ (-40°F to 140°F), this coil maintains stable performance even in extreme temperature conditions.

Electrical Interface: It features a flat plug compatible with cable diameters of 6-8mm, following the DIN 46244 standard. This ensures convenient wiring along with stable and reliable electrical contact.

Service Life: Built with high-quality coil windings and sealing materials, the ASCO Pulse Valve Coil is resistant to wear and loss. Its extended service life helps reduce downtime caused by frequent replacements.

Installation Characteristics: The coil is compatible with corresponding ASCO series pulse valves and is easy to install. It can be quickly connected without complex debugging and can be mounted in any position without affecting its operation.

Application Scenarios: Widely utilized across various industries, the coil is ideal for environmental protection dust removal, chemical fluid control, metallurgy, rubber, flour, pharmaceuticals, carbon processing, building materials, mining, and more. It is particularly suitable for local dust source removal and diverse fluid control equipment.

Technical Parameters:

Applications:

Before installation, please ensure that the coil model and rated voltage match the specifications of the pulse valve model and the equipment’s voltage requirements. This verification is crucial to prevent coil burnout or potential equipment damage caused by voltage mismatches.

During installation, make sure that all wiring connections are secure to prevent poor contact. Proper insulation protection should be applied to avoid safety risks such as electrical leakage or short circuits. Additionally, all wiring must strictly follow electrical safety standards and regulations.

When the coil is in use, avoid exposing it to high temperatures, excessive humidity, or dusty conditions for prolonged periods. Regularly clean the dust from the coil’s surface to help extend its service life. If the environment is particularly harsh, consider implementing additional protective measures to safeguard the coil.

If the coil exhibits any abnormal behavior—such as malfunction, excessive heating, or unusual noises—immediately disconnect the power supply for inspection. To prevent further equipment damage, it is advisable to replace the coil with an original part of the same model. Avoid using unauthorized or non-original replacements.

For storage, keep the coil in a dry, well-ventilated, and cool place. Protect it from direct sunlight, rain, and mechanical pressure to prevent moisture absorption, deformation, or other damage to the coil.

Packing and Shipping:

Product Packaging:

The ASCO Solenoid Valve is carefully packaged to ensure protection during transit. Each valve is individually sealed in anti-static plastic bags and cushioned with foam inserts inside a sturdy cardboard box. The packaging is designed to prevent damage from moisture, dust, and mechanical impact. Clear labeling with product details, model number, and handling instructions is provided on the exterior of the box for easy identification.

Shipping:

ASCO Solenoid Valves are shipped using reliable carriers with tracking options available. The shipping process ensures timely delivery with options for standard, expedited, or overnight shipping based on customer requirements. All shipments comply with international shipping regulations and include necessary documentation such as invoices and certificates of conformity when applicable. Special care is taken to handle the packages as fragile to maintain product integrity until delivery.
